Rail drilling machine

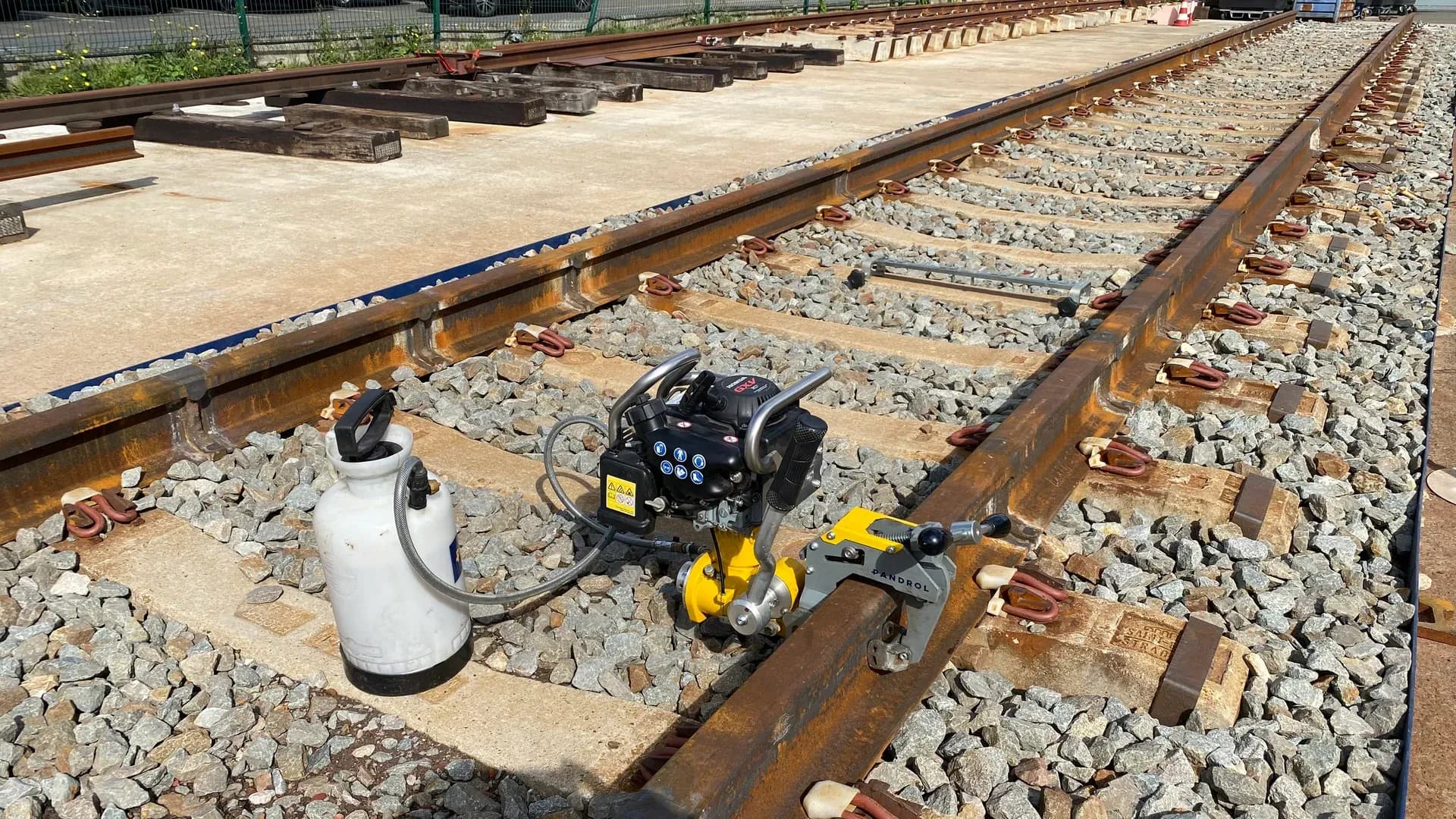

The Pandrol Rail Drilling Machine is designed to bore all kinds of vignole and tram rails with extreme precision. Mounted on a clamp and provided with drilling templates, the drill can be adjusted to the full range of standard drilling patterns.

Rail drilling machine overview

The Pandrol Rail Drilling Machine is designed to bore all kinds of vignole and tram rails with extreme precision. Mounted on a clamp and provided with drilling templates, the drill can be adjusted to the full range of standard drilling patterns.

  • Reliable Honda engine with minimal maintenance required
  • Modular rail clamp for flexibility and cost savings
  • Precision-engineered templates for accurate drilling
  • Easy to operate with minimal training required

Downloads

Product Information Sheet

Benefits of the Rail Drilling Machine

01

Precise Drilling

The machine is designed to bore all types of vignole and tram rails with extreme precision, ensuring high-quality results.

02

Powerful Engine

The four-stroke Honda engine delivers a maximum power of 1.5 kW at 4,800 rpm, providing reliable and efficient performance.

03

Accelerator Synchronization

The engine speed is synchronized with the drill’s position, automatically accelerating during drilling to prevent excessive fuel consumption.

04

Modular Rail Clamp

The modular design allows customers to swap the working rail or drill different patterns by changing the templates on the original clamp.

05

Ease of Use

The machine’s robust transmission and high-quality drill ensure that operators can drill without excessive force, reducing fatigue.

Technical Features of the Rail Drilling Machine

01

Components

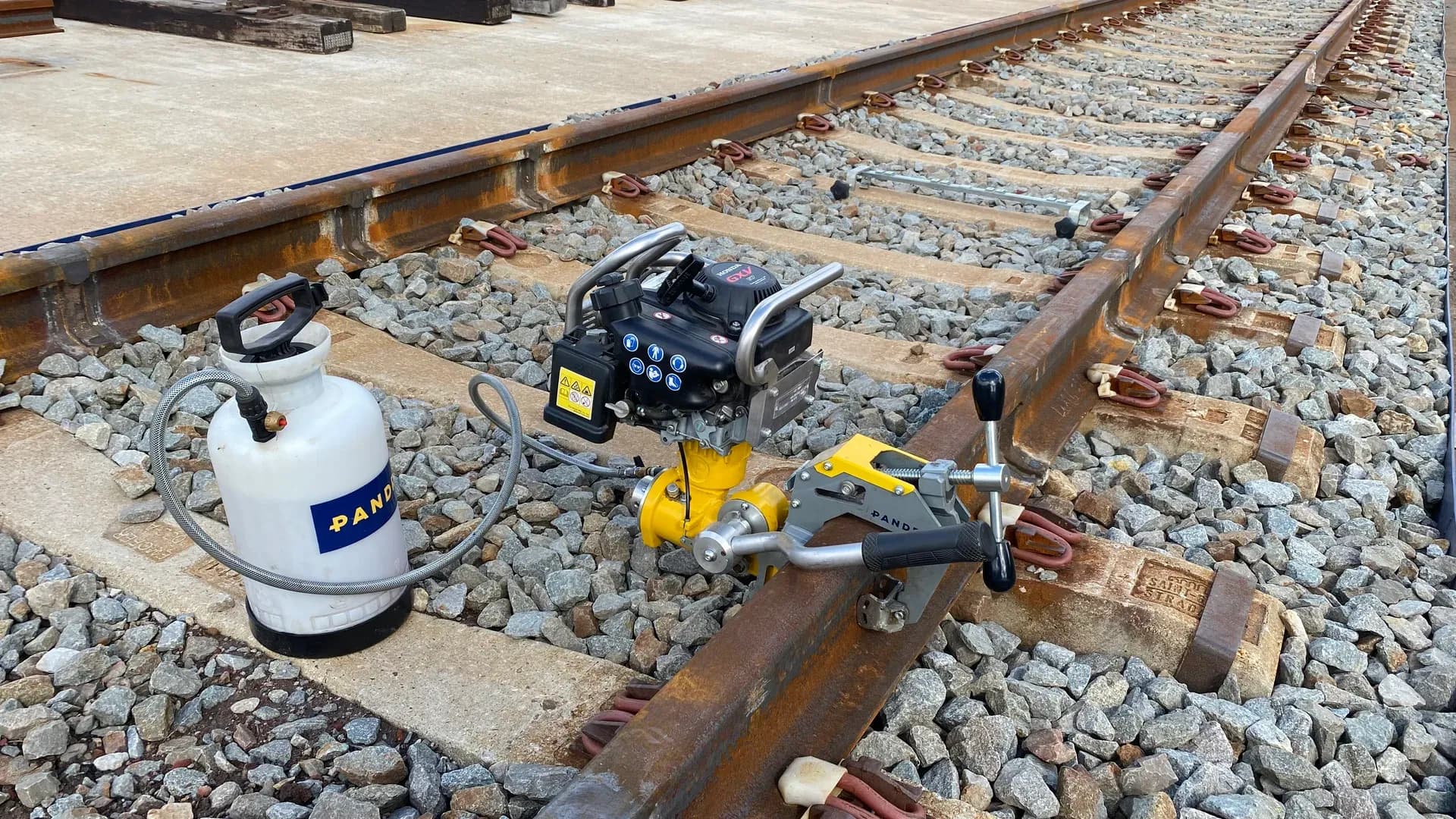

The machine includes a cooling tank, Honda engine, rail clamp, drilling template, and rail template.

02

Precise Templates

The templates are produced with precision on a numerically controlled machine, guaranteeing high-quality results with no need for rectification.

03

Efficient Drill

The high-quality drill is quick and efficient, saving time on drilling operations.

04

Robust Transmission

The robust transmission, coupled with the high-quality drill, allows operators to work with minimal effort.

05

Environmentally Friendly

The fuel-efficient engine and accelerator synchronization make the machine more environmentally friendly and cost-effective to operate.

06

Minimal Maintenance

The reliable Honda engine requires minimal preventive and corrective maintenance, saving customers time and money.
